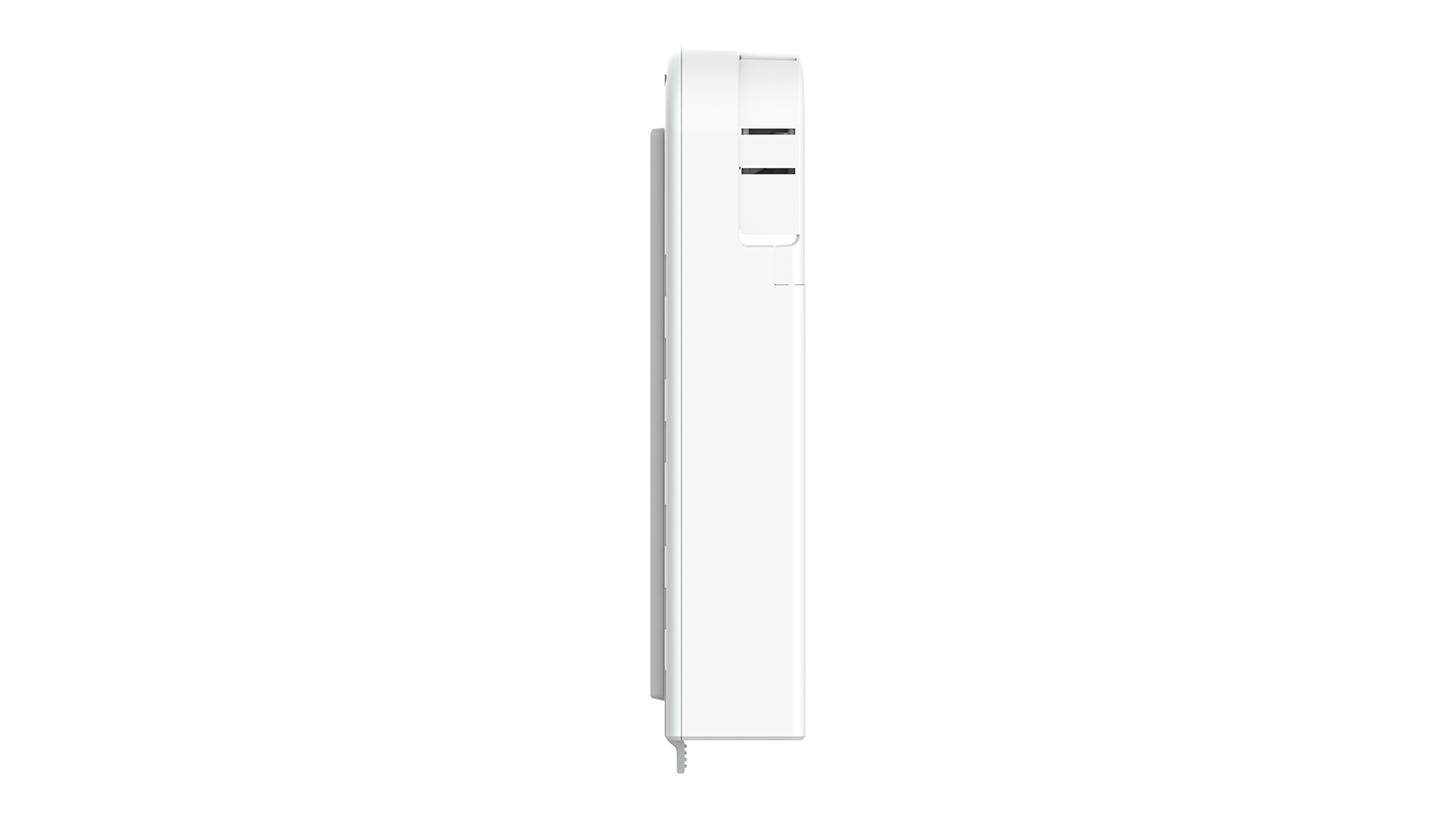

Aqara Roller Shade Driver

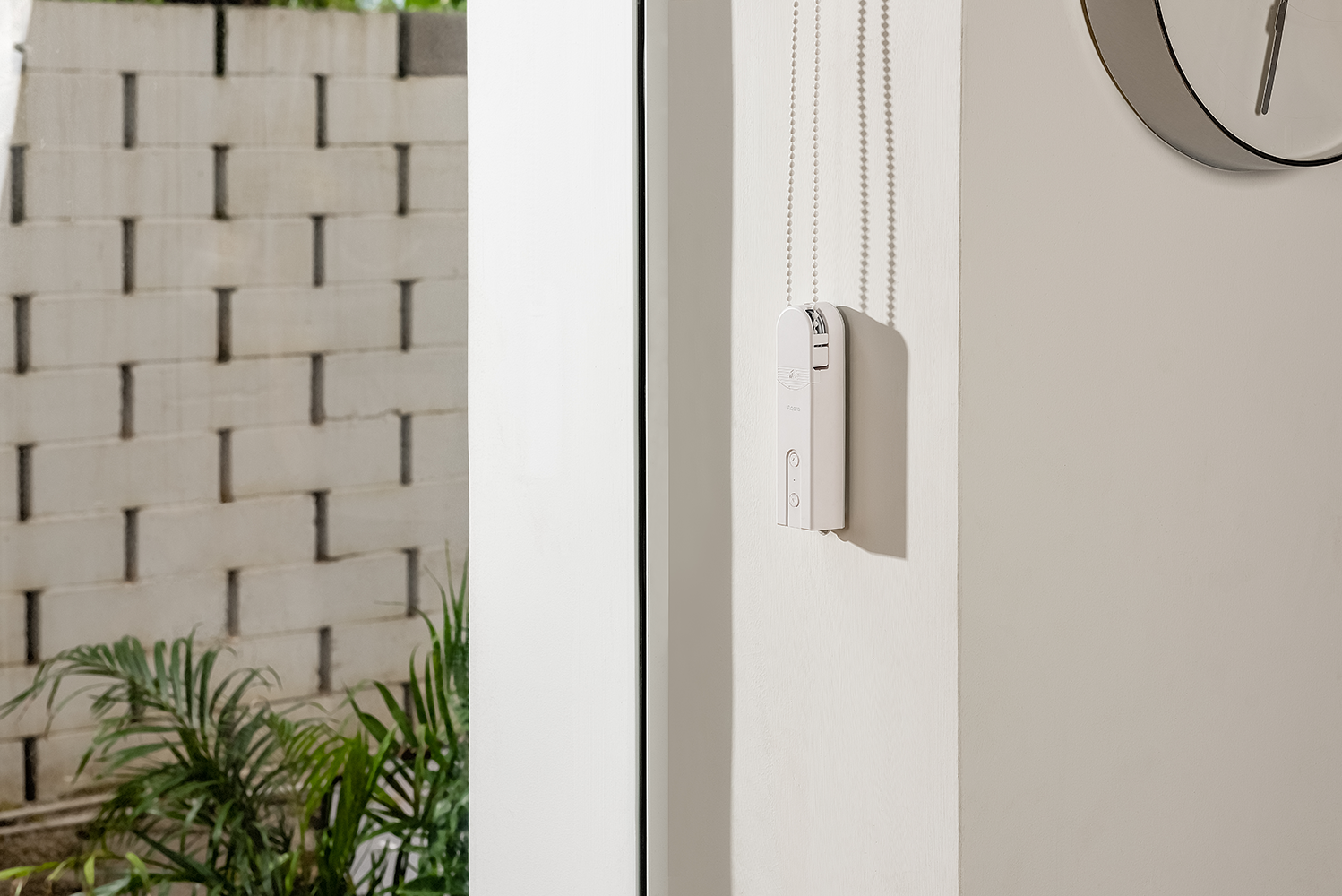

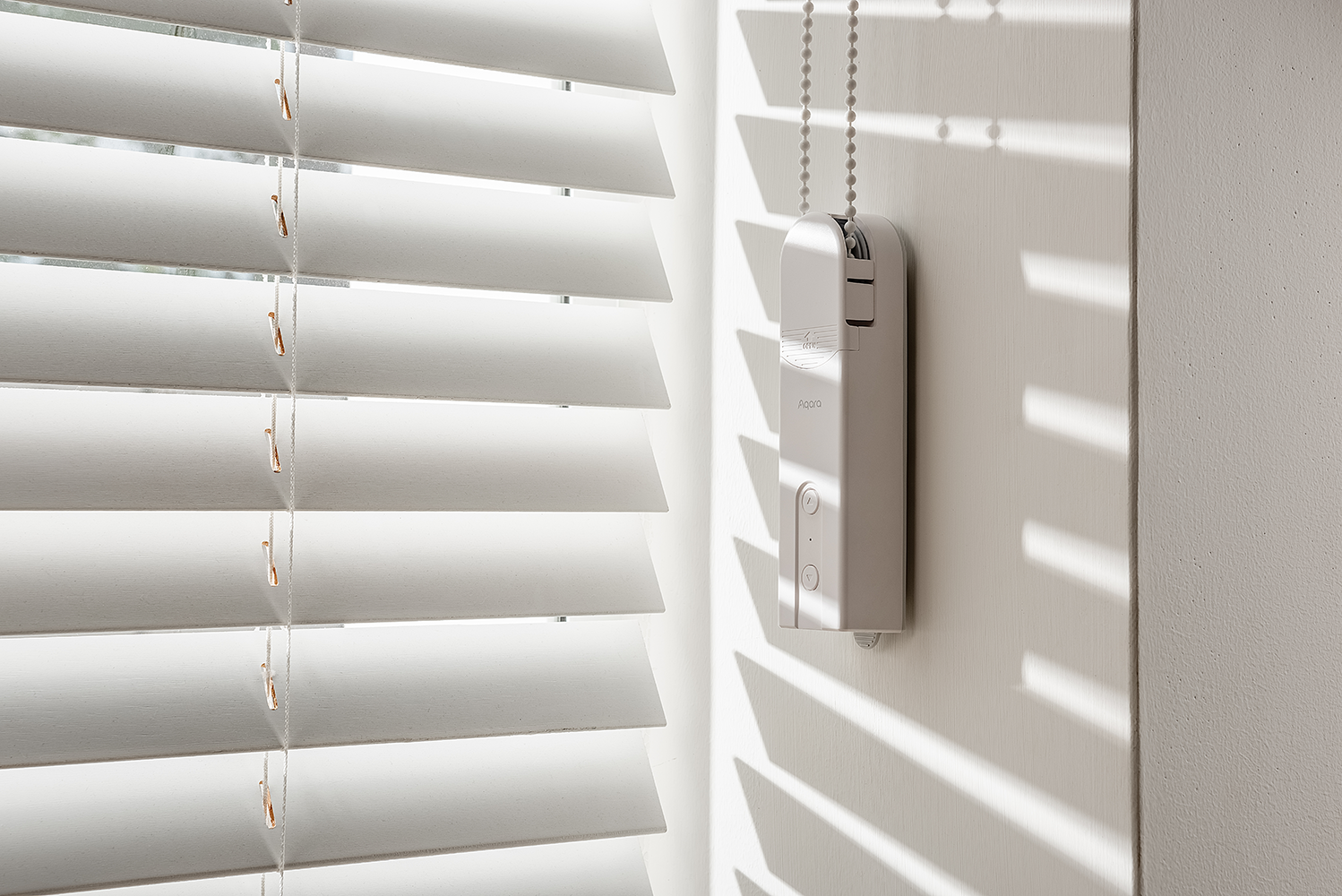

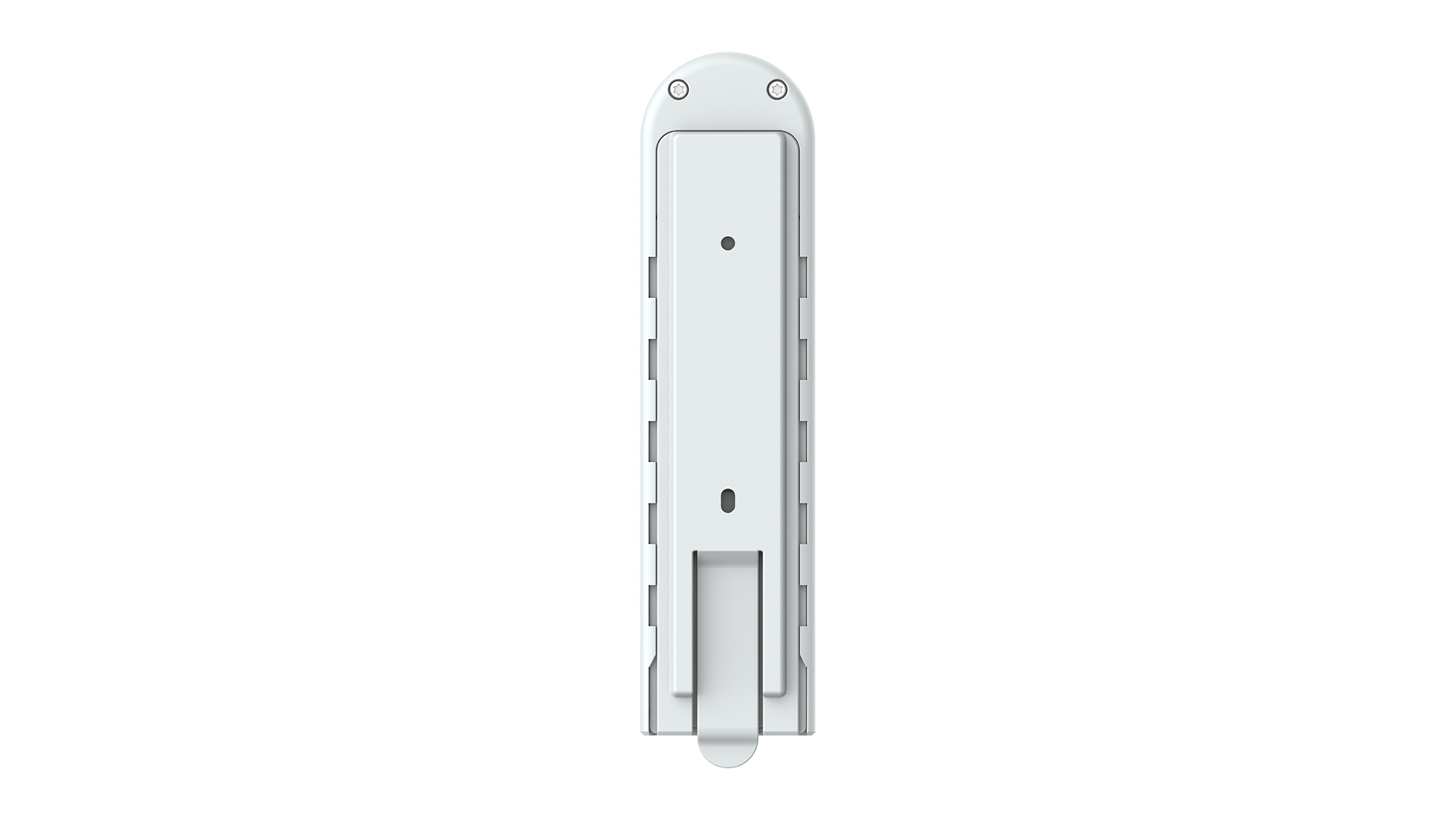

The Aqara Roller Shade Driver E1 is a revolutionary new device for automatic shutter control. Make your blinds, shades and anything else that opens with a control chain smart. The device is easy to install and battery powered.There are holes on the back panel for self-tapping screws. It can also be attached to the wall with adhesive tape. Also included are interchangeable swivel mechanisms for bead sizes from 3mm to 6mm. You can watch an installation video at the bottom of this page.

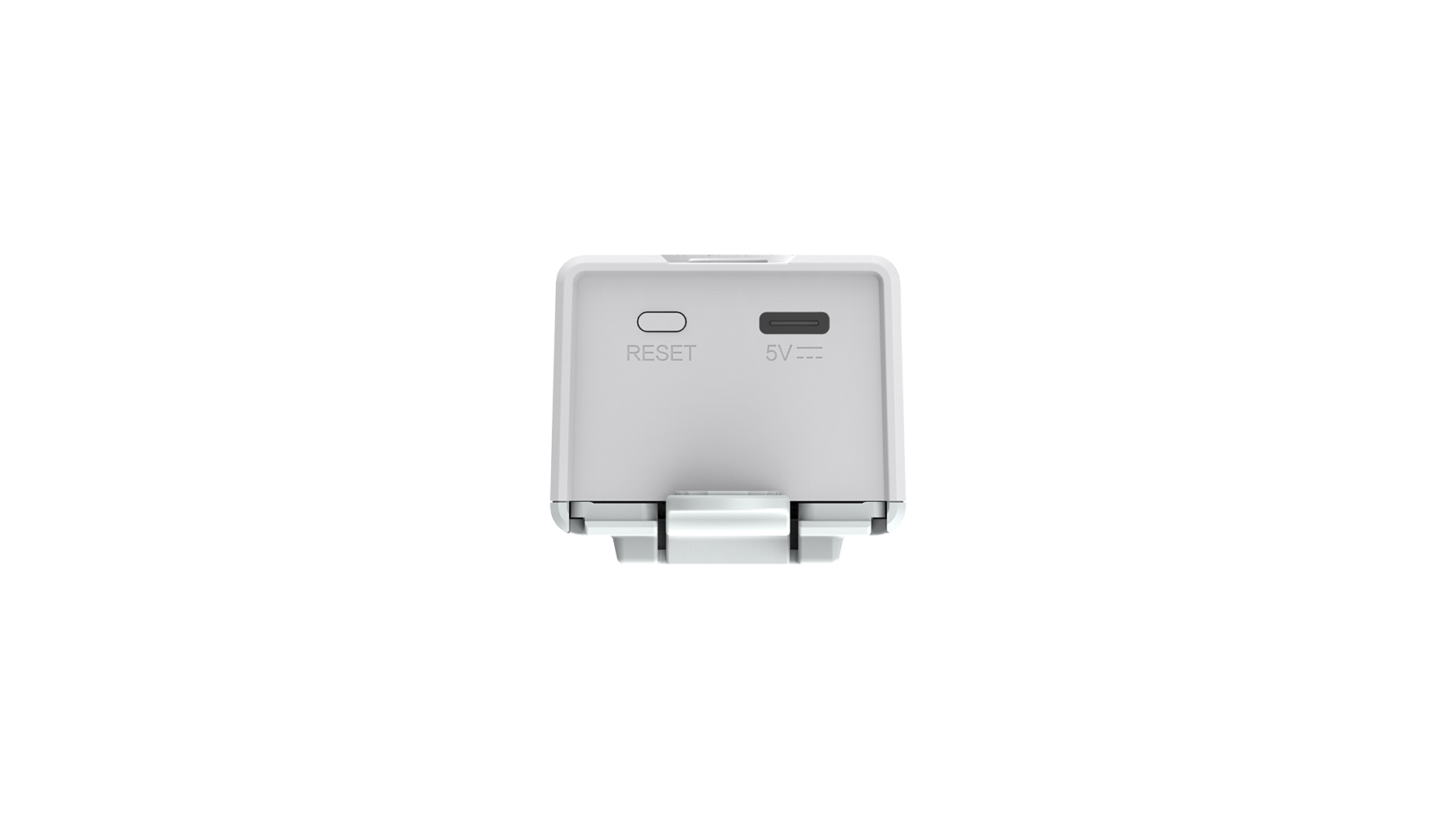

The Aqara Roller Shade Driver E1 works wirelessly for up to 2 months of daily use thanks to its built-in rechargeable battery. However, the Aqara Roller Shade Driver E1 can also be used with a cord connected at all times. The device is charged using the included USB-C cable.
AQARA HUB IS REQUIRED, ie Aqara Hub E1 -Camera Hub G3-Camera Hub G2-Aqara Hub M2
| Basic general data | |
| Manufacturer | Aqara |
| Model | Roller Shade Driver E1 |
| Model code | RSD-M01 |
| Type | Motor for roller shutters |
| Communication | ZigBee |
| Hub required for connection | Yes |
| Cooperation with systems | Alice Amazon Alexa Apple HomeKit Google Assistant Google Home IFTTT Marusya Siri |
| Smart Home features | Yes |
| Support for functions | Remote management |
| Power supply | Dedicated rechargeable battery |
| Housing color | White |
| Dimensions | 42 x 37 x 165 mm |
| Operating temperature | From -10 to 55 °C |
| Operating humidity | 0-95% relative humidity |
| Nominal input | 5V/1A |
| Power consumption | 5W |
